Crowdfunding App

Deploying a crowdfunding App using the Andromeda CLI.

We have covered earlier the App contract and its messages. We briefly discussed the steps to deploying an App. In this section we will be providing an example of how to deploy an App using the Andromeda CLI.

The Steps of Deploying an App

We already have an ADODB contract with saved code IDs of the ADOs and Kernel ADO deployed. These addresses can be found in Deployed Contracts section. This means that to deploy an App we only need to instantiate it through the CLI.

Defining our App

For this example we will be building a simple crowdfunding app. We will be creating NFTs that are sold in a crowdfund and then the proceeds are distributed to a sepcified address. If the crowdfund does not reach the threshold of minimum tokens sold, the money is refunded to the buyers.

Defining the Instantiation Messages

For this example, our App needs to have 5 components/ADOs:

Let us first start by representing the instantiation message for each of our ADOs:

CW721

{
"name":"Example App",
"symbol":"SMMT",
"minter":"./crowdfund",
"kernel_address":"andr14hj2tavq8fpesdwxxcu44rty3hh90vhujrvcmstl4zr3txmfvw9shptkql"
}

The JSON message in our case is the following as Base64:

eyJuYW1lIjoiRXhhbXBsZSBBcHAiLCJzeW1ib2wiOiJTTU1UIiwibWludGVyIjoiLi9jcm93ZGZ1bmQiLCJrZXJuZWxfYWRkcmVzcyI6ImFuZHIxNGhqMnRhdnE4ZnBlc2R3eHhjdTQ0cnR5M2hoOTB2aHVqcnZjbXN0bDR6cjN0eG1mdnc5c2hwdGtxbCJ9

Crowdfund

{
"token_address":"./tokens",
"can_mint_after_sale":true,
"kernel_address":"andr14hj2tavq8fpesdwxxcu44rty3hh90vhujrvcmstl4zr3txmfvw9shptkql"
}

As Base64:

eyJ0b2tlbl9hZGRyZXNzIjoiLi90b2tlbnMiLCJjYW5fbWludF9hZnRlcl9zYWxlIjp0cnVlLCJrZXJuZWxfYWRkcmVzcyI6ImFuZHIxNGhqMnRhdnE4ZnBlc2R3eHhjdTQ0cnR5M2hoOTB2aHVqcnZjbXN0bDR6cjN0eG1mdnc5c2hwdGtxbCJ9

App

{
  "name": "Crowdfunding",
  "app_components": [
    {
      "name": "crowdfund",
      "ado_type": "crowdfund",
      "component_type":{
       "new":"eyJ0b2tlbl9hZGRyZXNzIjoiLi90b2tlbnMiLCJjYW5fbWludF9hZnRlcl9zYWxlIjp0cnVlLCJrZXJuZWxfYWRkcmVzcyI6ImFuZHIxNGhqMnRhdnE4ZnBlc2R3eHhjdTQ0cnR5M2hoOTB2aHVqcnZjbXN0bDR6cjN0eG1mdnc5c2hwdGtxbCJ9"
       }
     },
    {
      "name": "tokens",
      "ado_type": "cw721",
      "component_type":{
      "new":"eyJuYW1lIjoiRXhhbXBsZSBBcHAiLCJzeW1ib2wiOiJTTU1UIiwibWludGVyIjoiLi9jcm93ZGZ1bmQiLCJrZXJuZWxfYWRkcmVzcyI6ImFuZHIxNGhqMnRhdnE4ZnBlc2R3eHhjdTQ0cnR5M2hoOTB2aHVqcnZjbXN0bDR6cjN0eG1mdnc5c2hwdGtxbCJ9"
       }
    }
  ],
  "kernel_address":"andr14hj2tavq8fpesdwxxcu44rty3hh90vhujrvcmstl4zr3txmfvw9shptkql"
}

There are several components found here. A simple name for the app, the components of the app itself and a reference to the “Kernel”. Each component of the app provides two values: a name used for referencing for other components within the app, and the base64 encoded instantiation message.

Instantiating the App

If you do not have the CLI downloaded, go to the Introduction to Apps section to get the latest version.

First, let us open the CLI by running andr in our terminal. We then need to choose the chain we want to deploy on. Run "chain use" in the CLI and select the testnet that you want to deploy on. For this example I will be using the Andromeda test-net Galileo-3.

We have already uploaded the App ADO to the Andromeda testnet. A simple way to check the latest code id for the App ADO is to query it from the ADODB using the chain you want to use.

In the CLI, while connected to the chain of choice, run:

os wadodb getcodeid app-contract

The code Id to use will be returned.

Now we can instantiate our App. We will be using our wasm command to instantiate our app:

wasm instantiate <code-id> '{"name": "Crowdfunding","app_components": [{"name": "crowdfund","ado_type": "crowdfund","component_type":{"new":"eyJ0b2tlbl9hZGRyZXNzIjoiLi90b2tlbnMiLCJjYW5fbWludF9hZnRlcl9zYWxlIjp0cnVlLCJrZXJuZWxfYWRkcmVzcyI6ImFuZHIxNGhqMnRhdnE4ZnBlc2R3eHhjdTQ0cnR5M2hoOTB2aHVqcnZjbXN0bDR6cjN0eG1mdnc5c2hwdGtxbCJ9"}},{"name": "tokens","ado_type": "cw721","component_type":{"new":"eyJuYW1lIjoiRXhhbXBsZSBBcHAiLCJzeW1ib2wiOiJTTU1UIiwibWludGVyIjoiLi9jcm93ZGZ1bmQiLCJrZXJuZWxfYWRkcmVzcyI6ImFuZHIxNGhqMnRhdnE4ZnBlc2R3eHhjdTQ0cnR5M2hoOTB2aHVqcnZjbXN0bDR6cjN0eG1mdnc5c2hwdGtxbCJ9"}}],"kernel_address":"andr14hj2tavq8fpesdwxxcu44rty3hh90vhujrvcmstl4zr3txmfvw9shptkql"}'

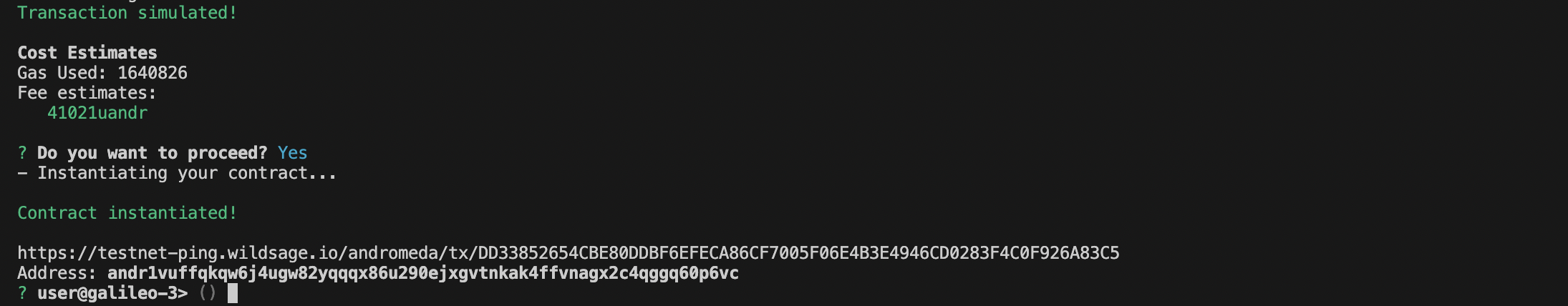

Upon instantiation, we will get a link to the explorer where we can check the transaction. Also the contract address of the App is displayed:

Transaction

Open the explorer link where you can see that the instantiation was a success. Three contracts were instantiated in total which are the App and the 2 components we used.

Interacting with the App

Crowdfund

Now that the App has been created and we have ownership over all the components, we can proceed with minting the tokens for the crowdfund.

Minting the NFTs

We will be minting three new tokens using the crowdfund component.

{
    "mint":[
        {
            "token_id":"1",
            "token_uri":"https://gateway.pinata.cloud/ipfs...",
            "extension": {
                "publisher": "Andromeda"
              }
        },
         {
            "token_id":"2",
            "token_uri":"https://gateway.pinata.cloud/ipfs...",
            "extension": {
                "publisher": "Andromeda"
              }
        },
         {
            "token_id":"3",
            "token_uri":"https://gateway.pinata.cloud/ipfs...",
            "extension": {
                "publisher": "Andromeda"
              }
        }
    ]
}

Let us run the execute:

wasm execute <crowdfund-contract-address> '{"mint":[{"token_id":"1","token_uri":"https://gateway.pinata.cloud/ipfs...","extension": {"publisher": "Andromeda"}},{"token_id":"2","token_uri":"https://gateway.pinata.cloud/ipfs...","extension": {"publisher": "Andromeda"}},{"token_id":"3","token_uri":"https://gateway.pinata.cloud/ipfs...","extension": {"publisher": "Andromeda"}}]}'

Transaction

In this message multiple tokens are minted and their mint messages are proxied to the “tokens” contract found within the app. No owner is provided, although one can be declared, so the crowdfund contract is assigned as the owner of the tokens for the duration of the sale.

Since we have minted our tokens, we can now start the crowdfund sale.

Starting The Sale

We call the StartSale message to start the crowfunding sale on the NFTs we minted.

{"start_sale":{
        "end_time"::1726223089000,
        "price": {
          "amount": "10000",
          "denom": "uandr"
        },
        "min_tokens_sold": "0",
        "max_amount_per_wallet":10,
        "recipient":{
            "address":"<address-to-receive-funds>"
          }
        }
      }

Let us run the execute:

wasm execute <crowdfund-contract-address> '{"start_sale":{"end_time":"11048328053820324","price":{"denom":"uandr","amount":"10000"},"min_tokens_sold":"10000","max_amount_per_wallet":10,"recipient":{"addr":"andr1gzk2m0k40e30wn6wv9j9kcrx4ljlk4ks8whrgq"}}}'

Transaction

This message commences a sale, listing each token for 10000uandr with a minimum of 0 and expires at time 1726223089000 . The recipient defined in this message will be the receiver of the funds after the sale has ended. In this case the recipient is another address.

Let's query the balance of the recipient before purchasing the NFTs. We run the following command::

? user-3@galileo-4>  bank balance uandr <recipient-address>

Result:

{{ denom: 'uandr', amount: '199614441' }

Balance
uandr: 199614441

The sale has started, time to purchase our minted tokens.

Purchase the NFTs

{
"purchase":{
    "number_of_tokens":1
    }
}
wasm execute <crowdfund-contract-address> '{"purchase":{"number_of_tokens":1}}'

For purchasing the tokens I will be using some addresses representing buyers.

Purchase token 1

Purchase token 2

Purchase token 3

End The Sale

Now that the tokens have been sold the sale can be ended:

{
"end_sale":{}
}
wasm execute <crowdfund-contract-address> '{"end_sale":{}}'

We have successfully:

  1. Minted tokens for the crowdfund

  2. Started a sale to sell the tokens

  3. Purchased the tokens for 1000 uandr each

  4. Ended the sale

Since each of the tokens was sold for 10000 uandr we should have 30000uandr sent to the recipient address that we specified in the StartSale message. To make sure of the results, let us check the balance again:

? user@galileo-3> bank balance uandr <address>
{ denom: 'uandr', amount: '199644441' }

Balance
uandr: 199644441

We can see that 30000uandr has been added to the balance.

You can also use the OwnerOf query to check who owns the NFTs now. It should correspond to your buyers.

Conclusion

This example serves as a small tutorial for building an Andromeda app using the CLI. We will have many more examples like this coming soon representing the different apps that we can build using our ADOs. These tutorials are mostly made for developers looking to use and build using our ADOs. All what we did here and more can be done using our user friendly web-app with a few clicks.
